Kahului



SITE ANALYSIS:

  • Basically flat

  • Ocean surge overflow is at the rear of property (see site plan)

  • Views are west, northwest, and southwest (black rock)

  • Avoid view to south, condominiums near and not that pleasant to look at

  • Island breeze (trade winds) come from northeast (maximize air control to pass through building)

  • Building setbacks (see site plan)

  • Soil is sound for conventional residential foundation/floor systems

  • Light annual rain fall 3 - 4 inches per year

SPACE PLAN REQUIREMENTS:

  • 1 level 1400 sq. ft. structure (1000/400) similar Arch.style

  Cottage requirements:

  • Entry with display of dolphin sculpture (5 ft. tall)

  • Living room w/ent. center & art display on a pedestal (18" x 18" x 32"H)

  • Kitchenette/dinette (small) for light meals (breakfast, lunch)

  • Laundry/storage/utility mechanical closet(shared)

  • Second bath /half option(shared)

  • Master Suite (bedroom w/master bath/closet)

  • Art Studio (400 sq. ft. min.)

  • Maximize views (from all significant spaces)

  • Roof pitch to be 6:12(similar to existing roof styles)

  • Simple roof form (hips & gable only)

  • Jacuzzi spa (if budget allows)

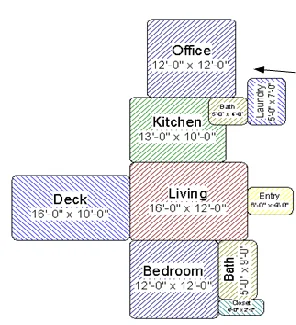

INITIAL FLOORPLANS

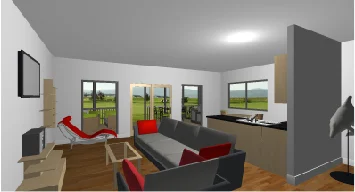

INTERIORS

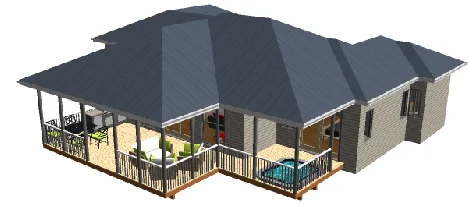

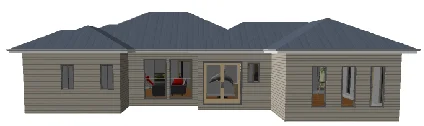

EXTERIORS
